1600W Smart Solar Hub | Dual MPPT EMS Solar Energy Manager, WiFi App Control, IP65 for LiFePO4 Solar Kit
Wide Application Scenarios

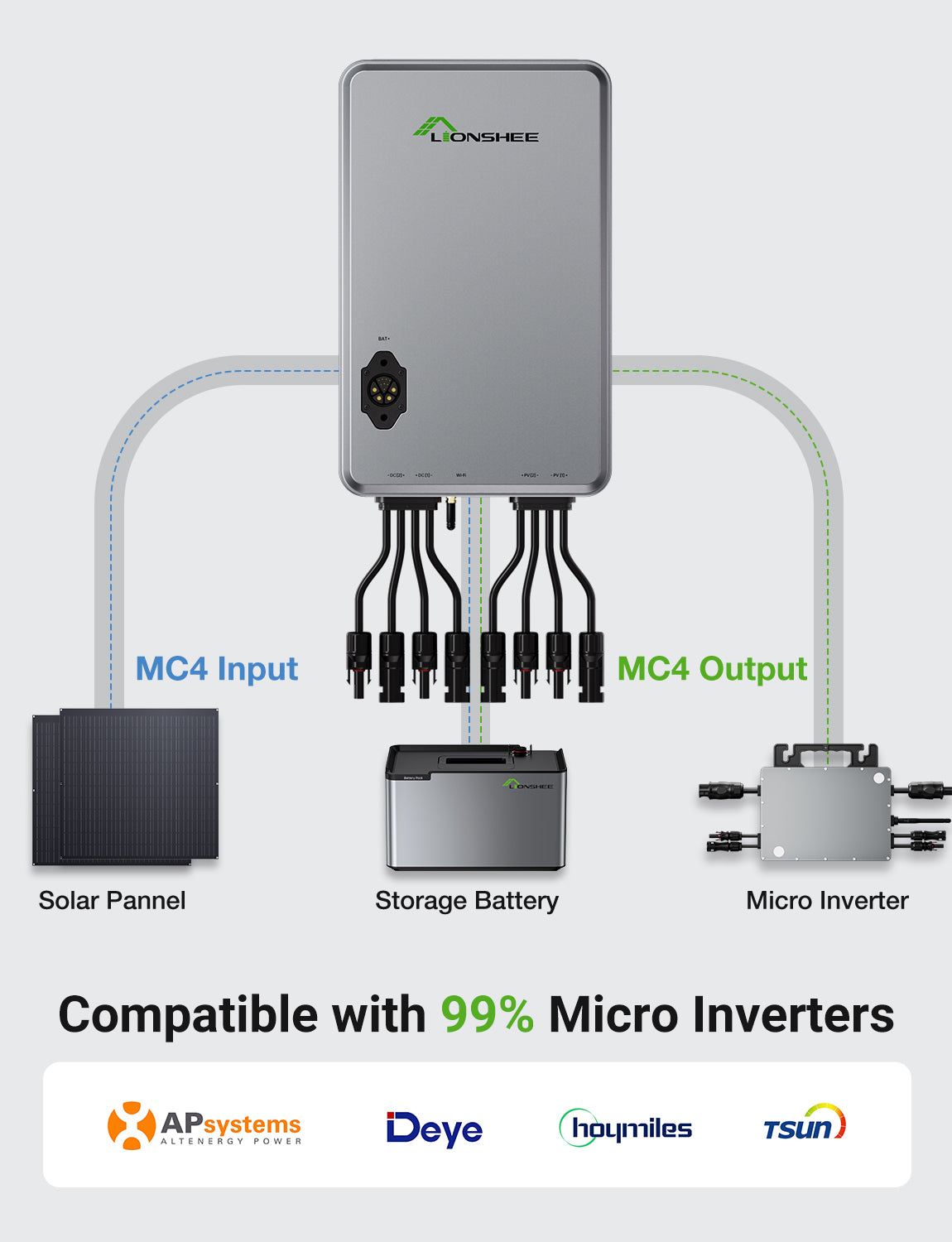

- ✔️ Residential Balcony Grid-Tied Solar Storage (match our LiFePO4 home batteries + solar panel kits + micro inverters)
- ✔️ Off-Grid Cabin, Tiny House, Remote Cottage Standalone Solar Power System
- ✔️ RV, Camper, Marine Boat Mobile Solar Energy Storage
- ✔️ Emergency Home Backup Power for blackout, outdoor shed solar supply
Main Features
- 1600W Dual MPPT EMS Solar Manager: 2 independent MPPT channels with max 60V PV input, 99.9% tracking efficiency, intelligent EMS auto allocate solar power to home loads & LiFePO4 battery storage, maximize solar self-consumption

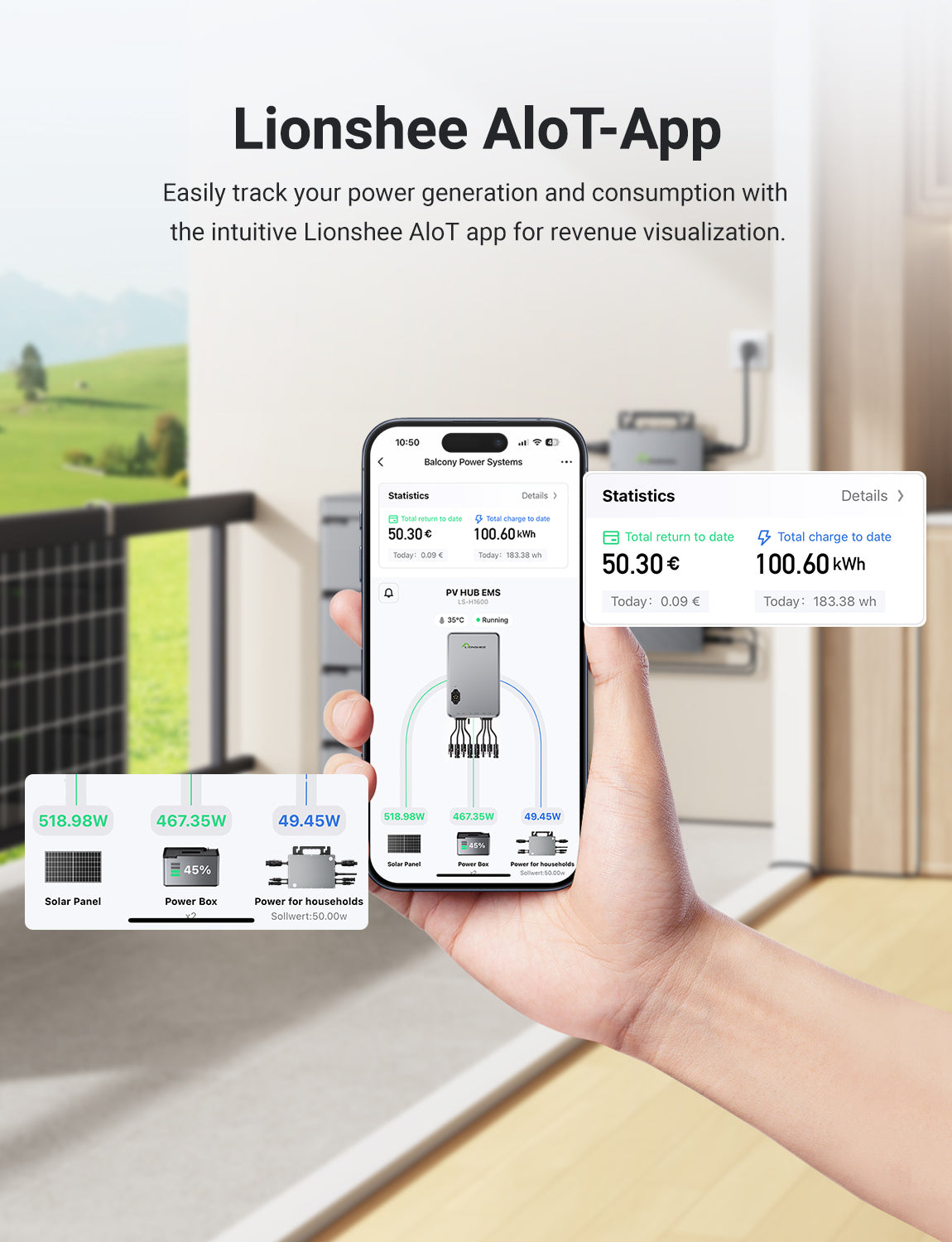

- Built-in WiFi Smart Life APP Control: Pre-install WiFi for free remote monitor/control, view real-time PV/battery/output data, customize charge/discharge plan; compatible with shelly smart meter for grid smart linkage

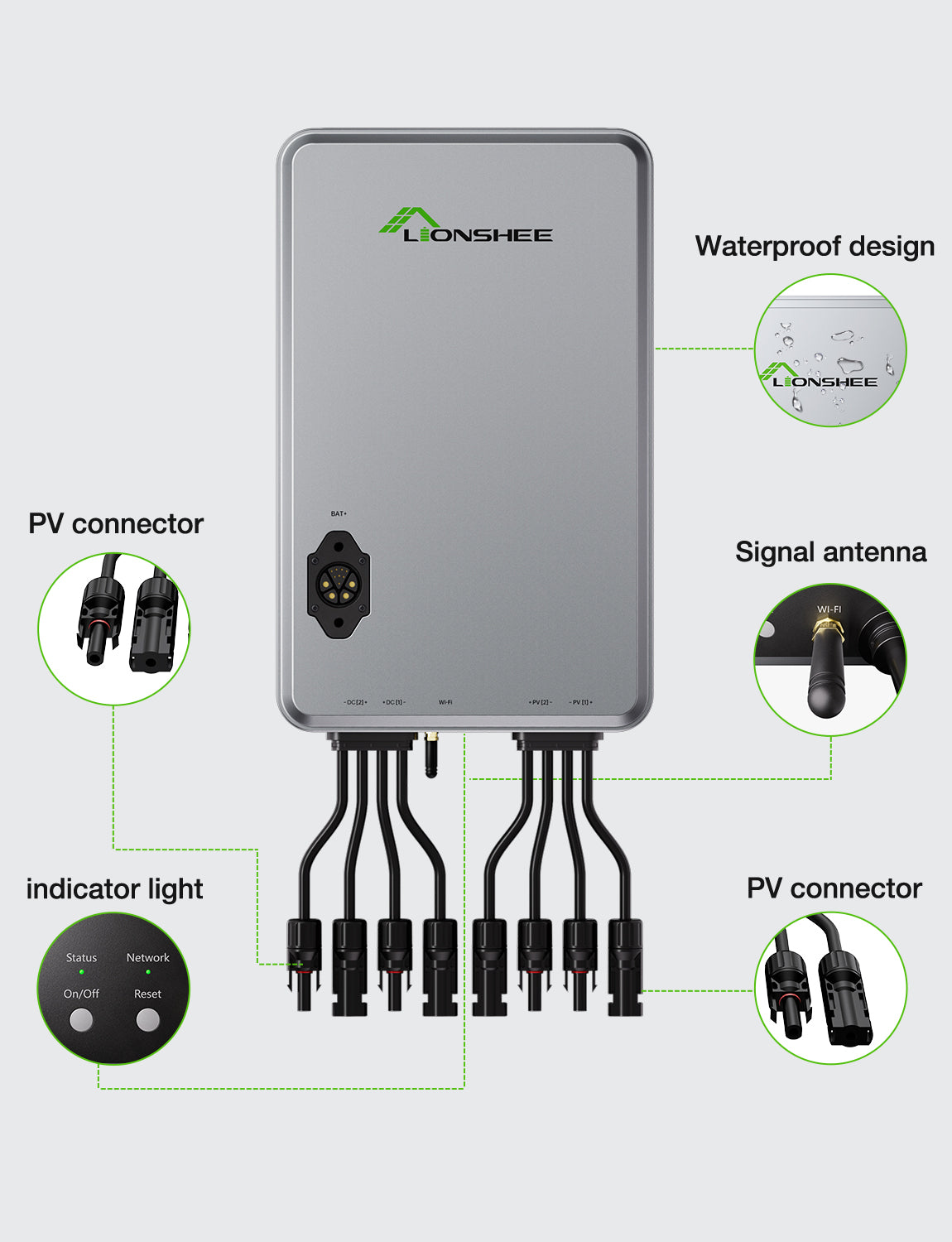

- IP65 Outdoor Waterproof & Compact Design: IP65 full weather protection, works from -20~65℃; 3.2KG lightweight & stackable design for easy DIY install on LiFePO4 battery top, ideal for balcony/outdoor solar setup
- Full Circuit Protection System: PV over/under voltage, overheat & short-circuit multi-protection with LED indicator fault alarm, effectively protect your LiFePO4 battery, solar panels and microinverters
- Certified & Reliable After-sale: CE/FCC/ROHS certified, 3-year factory warranty, complete MC4 cables & user manual included, perfectly matched with our store’s LiFePO4 batteries & complete solar panel kits

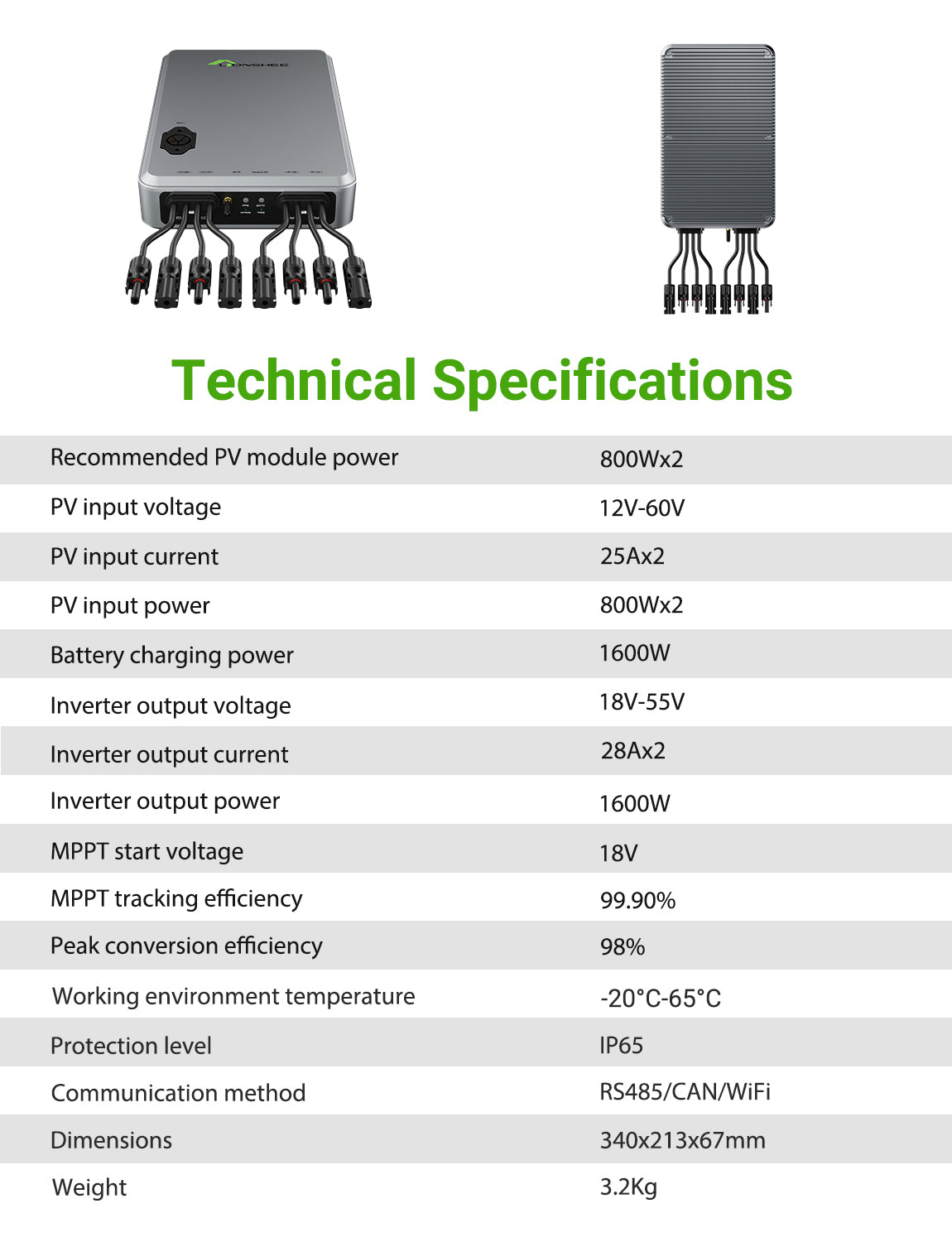

Item Parameter

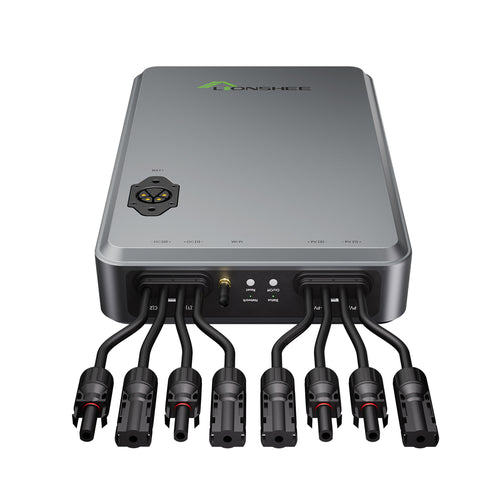

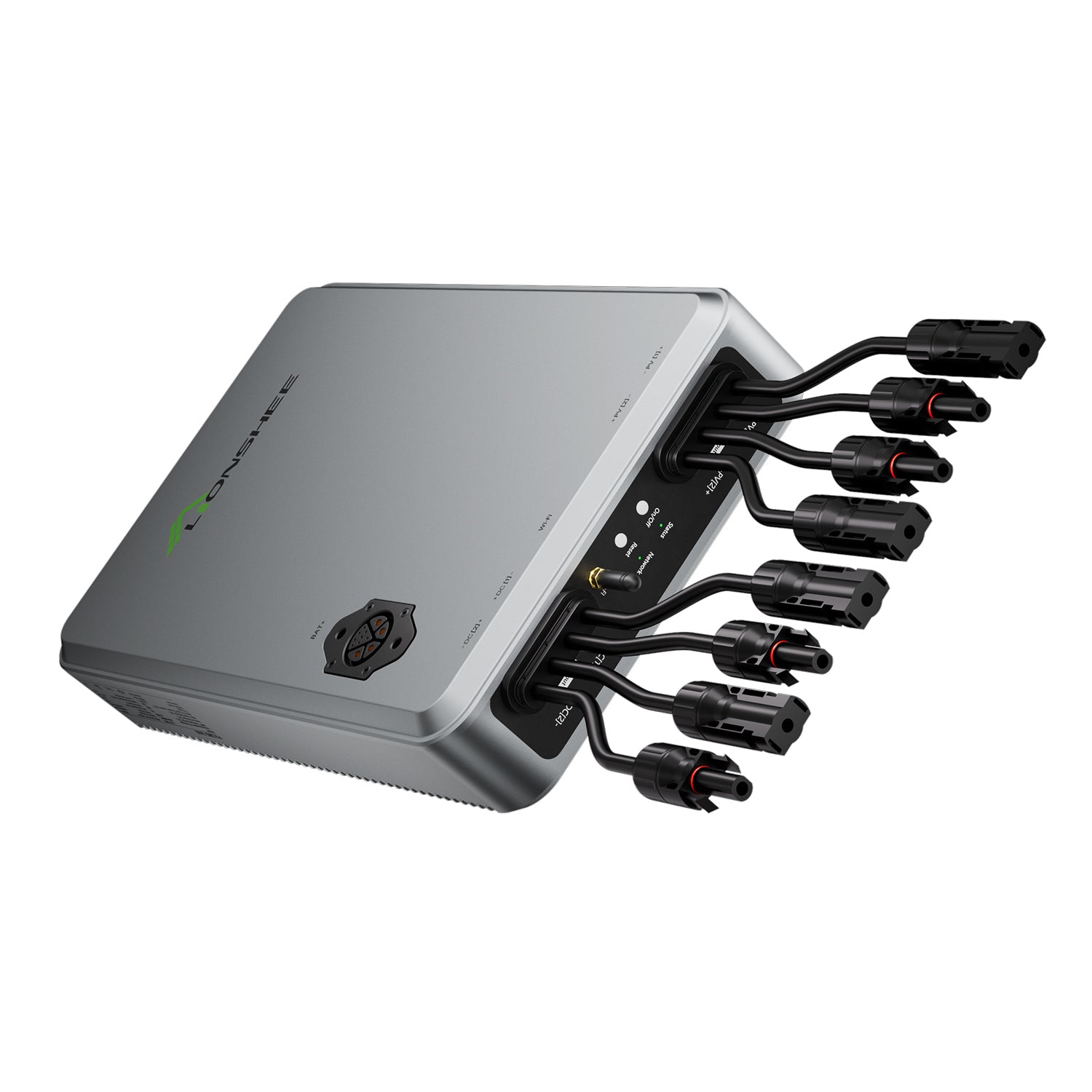

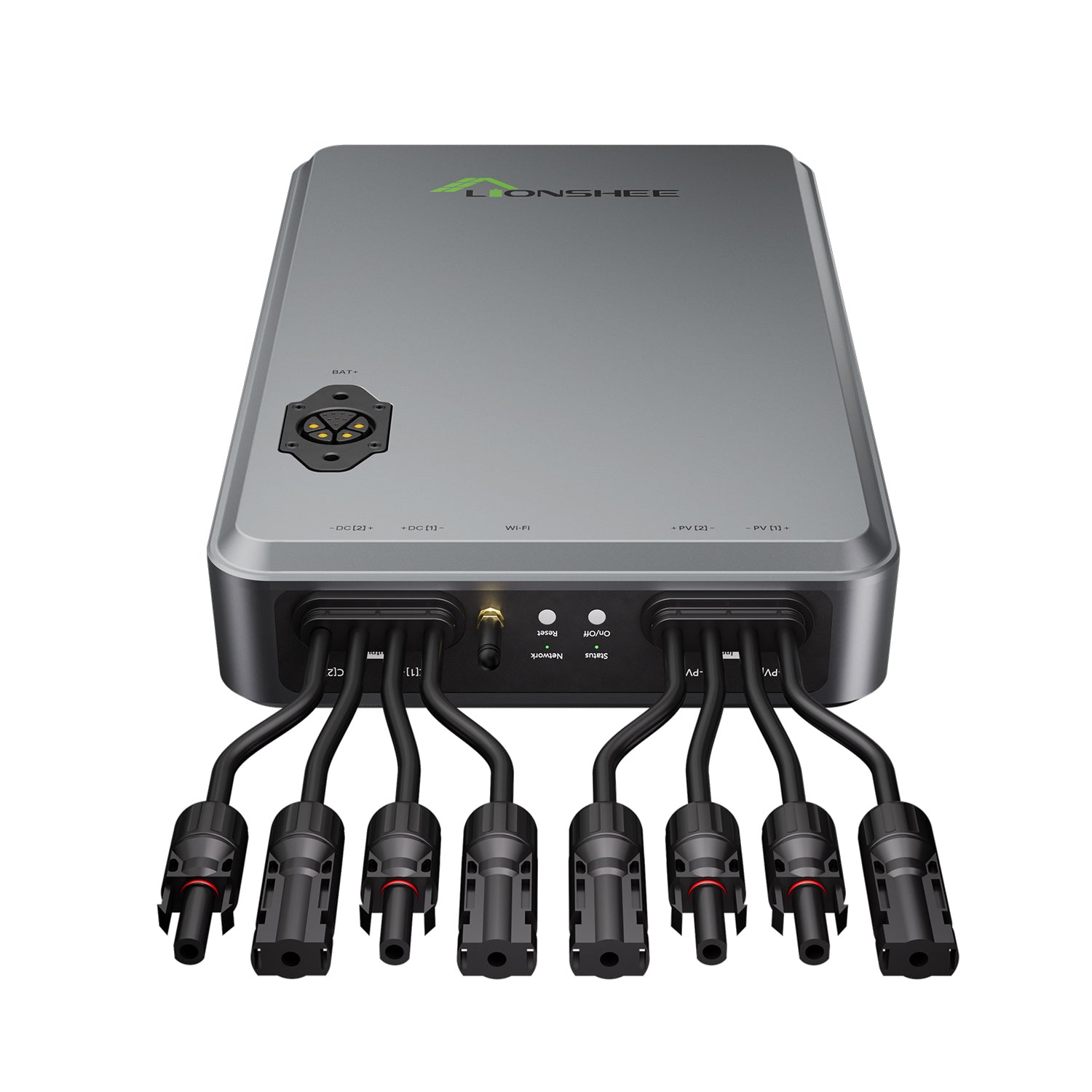

- Model:LS-H1600 Smart Solar HUB
- Rated EMS Output Power:1600W

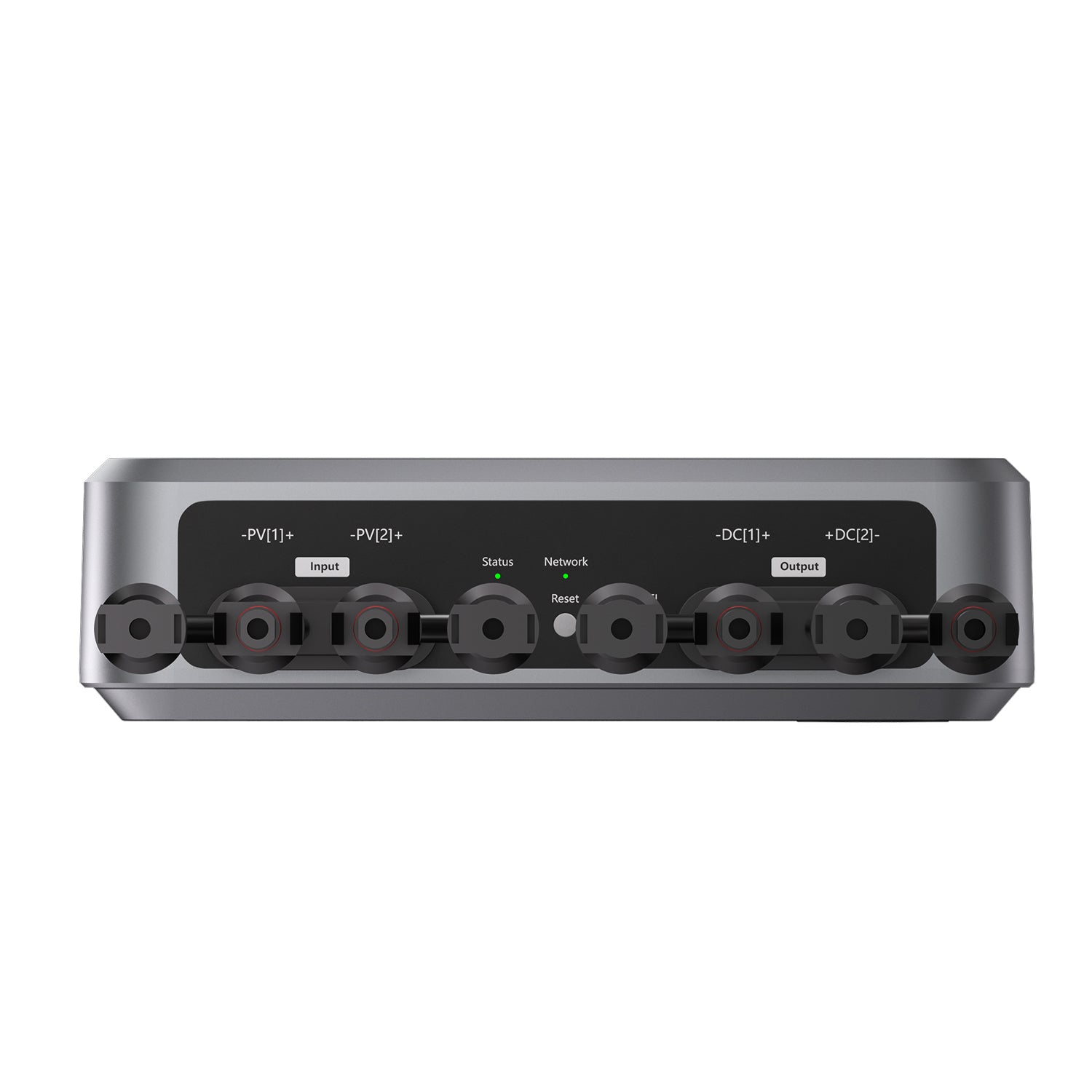

- MPPT Configuration:2 Independent MPPT Trackers
- Max PV Input Voltage:60V DC
- Recommended Single PV Power:800W ×2 (Total Max PV:1600W)
- MPPT Tracking Efficiency:99.9%
- Peak Conversion Efficiency:98%
- Working Temperature:-20℃ ~ +65℃
- Ingress Protection:IP65 Waterproof & Dustproof
- Communication:Built-in WiFi + RS485+CAN
- Product Dimension:340×213×67mm
- Net Weight:3.2KG
- Certification:CE, FCC, ROHS 2015/863/EU
What’s In The Box
- 1 × LS-H1600 Smart Solar Hub Main Unit
- 4 × 1M MC4 PV Connection Cables
- 1 × English Printed User Manual
Note
- Installation tools & extra solar/battery accessories are not included, sold separately in our Accessories category
F.A.Q
Q:Do I need approval from my local grid operator before installation?
Q:Do I need approval from my local grid operator before installation?
A:No grid operator pre-approval is required at all. The product complies with fully liberalized EU balcony PV & storage regulations. You only need to finish a simple short online registration form after self-installation, no complicated utility paperwork or inspection visits.
Q:What information do I need for online registration? How long does it take?
Q:What information do I need for online registration? How long does it take?
A:Only your address, meter number and device serial number are required. The whole registration process takes 3–5 minutes online, fully self-service without electrician assistance.
Q:Is this system legal in Germany/Austria/Netherlands/France/Belgium/Spain/Poland?
Q:Is this system legal in Germany/Austria/Netherlands/France/Belgium/Spain/Poland?
A:Yes. It meets VDE, CE, TÜV and relevant national plug-and-play balcony power standards across most European countries. The simplified registration rule applies to all mainstream EU residential markets.
Q:Can I install the whole set by myself? Do I need a certified electrician?
Q:Can I install the whole set by myself? Do I need a certified electrician?
A:Complete self-installation is supported. The kit is plug-and-play with clear illustrated manuals; no professional electrician is mandatory. Only basic DIY tools are needed.
Q:Is it suitable for apartment renters? Do I need landlord permission?
Q:Is it suitable for apartment renters? Do I need landlord permission?
A:It fits renters perfectly. The mounting brackets are non-destructive to balcony railings/walls, easy to remove when moving out. We still suggest you inform your landlord in advance as a courtesy.
Q:What are balcony solar systems?
Q:What are balcony solar systems?
A:A simple balcony solar system consists of a separate solar module and a micro-inverter. Solar energy is first converted to DC in the solar module - the inverter converts it to AC. The power from the balcony solar system is fed into the house or apartment network through any house socket and then supplied to household loads such as washing machines, refrigerators, air conditioners, and so on.
Q:Is it suitable for apartment renters? Do I need landlord permission?
Q:Is it suitable for apartment renters? Do I need landlord permission?
A:It fits renters perfectly. The mounting brackets are non-destructive to balcony railings/walls, easy to remove when moving out. We still suggest you inform your landlord in advance as a courtesy.
Q:How long does self-installation take?
Q:How long does self-installation take?
A:A full set can be mounted and wired within 20–30 minutes following our step-by-step guide.
Q:Why is the payback period only 3–4 years? How do you calculate this?
Q:Why is the payback period only 3–4 years? How do you calculate this?
A:The system stores surplus solar power for your household self-consumption, drastically cutting expensive peak-hour grid electricity bills. With current high EU residential electricity rates, most users fully recover their total investment within 3–4 years under regular daily use. After payback, every kWh generated becomes pure savings/profit for you.
Q:Can I sell extra stored electricity back to the grid for profit?
Q:Can I sell extra stored electricity back to the grid for profit?
A:The system prioritizes self-consumption to maximize your savings. Surplus power can feed into the grid following local feed-in tariff rules, bringing you extra small monthly income.
Q:How is your after-sales service?
Q:How is your after-sales service?
A:All parts of our balcony power plants are covered by a 10-year warranty.
